了解ISP选路

介绍ISP选路的概述和原理。

概述

ISP选路功能也称为运营商地址库选路功能，当FW作为出口网关设备连接多个ISP网络时，通过ISP选路功能可以使访问特定ISP网络的流量从相应出接口转发，保证流量转发使用最短路径，提高转发效率。

如图1所示，FW拥有两条属于不同ISP网络的出口链路。当内网用户访问ISP2中的Server2时，如果FW上存在等价路由，则FW可以通过两条不同的路径到达Server2，如图1中的路径1和路径2。其中，路径2显然不是最优路径，路径1才是用户所期望的路径。

配置ISP选路功能后，当内网用户访问Server1或Server2时，FW会根据目的地址所在ISP网络选择相应的出接口，从而使访问流量通过最短路径到达服务器，如图1中的路径3和路径1。

图1 ISP选路

ISP选路的原理

ISP选路是基于ISP路由的选路方式，通过批量生成到运营商网络的ISP路由实现访问特定ISP网络的报文都从相应的出接口转发。ISP选路可以单独使用，也可以结合其他智能选路功能一起使用，具体的使用场景分类如表1所示：

分类使用场景
ISP选路场景如果用户希望访问特定ISP网络的流量从相应出接口转发，不会绕道其他ISP，可以配置ISP选路功能。
ISP选路+策略路由组合场景如果用户希望根据报文目的地址所属ISP网络选择相应的出接口，并根据多出口策略路由进行智能的选路，实现链路资源的合理利用，可以使用该场景。
ISP选路+全局选路策略+DNS透明代理组合场景当内网用户通过域名访问Web服务器时，可以使用该场景。通过配置DNS透明代理，可以使DNS请求报文根据选择的出接口，修改DNS请求报文的目的地址（DNS服务器地址）。通过配置ISP选路和全局选路策略，FW根据报文目的地址所属ISP网络选择相应的出接口，并根据全局选路策略，实现链路资源的合理利用。

为了提高流量转发的可靠性，ISP选路功能可以配合健康检查功能一起使用，保证流量不被转发到故障链路上。当健康检查的结果显示链路故障时，对应的ISP路由表项将被删除，所以流量不会命中该条路由，也就避免被转发到故障链路上。当链路状态恢复正常时，对应的ISP路由表项将重新生成，流量即可按此路由进行转发。

Web举例：配置ISP选路实现报文按运营商转发

介绍通过配置ISP选路实现报文按运营商转发的配置举例。

组网需求

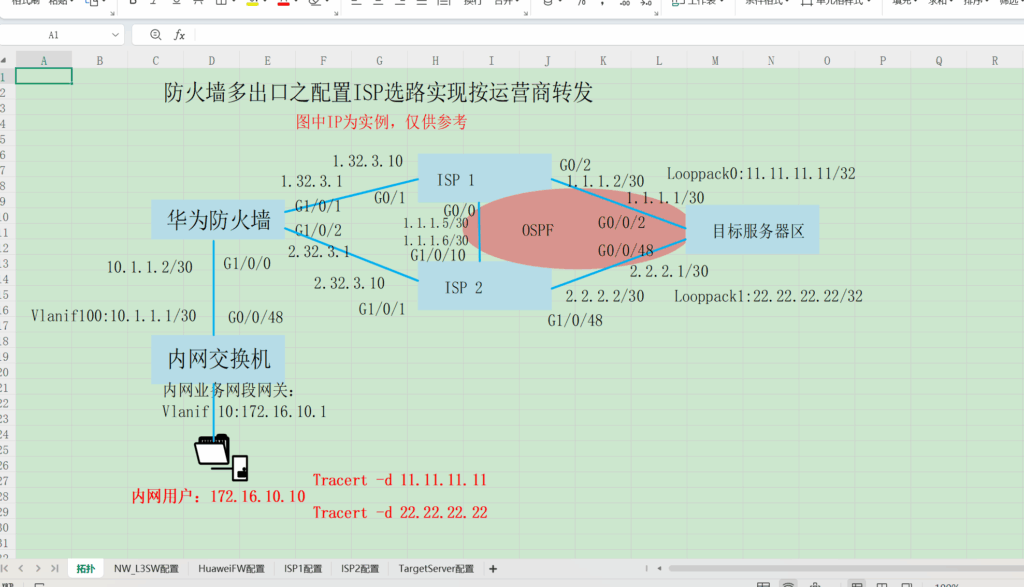

如图1所示，FW作为安全网关部署在网络出口，企业分别从ISP1和ISP2租用一条链路。

  • 企业希望访问Server 1的报文从ISP1链路转发，访问Server 2的报文从ISP2链路转发。
  • 当其中一条链路故障时，后续流量可以通过另一条链路转发，保证传输的可靠性。

图1 ISP选路组网图

配置思路

  1. 配置健康检查功能，分别为ISP1和ISP2链路配置健康检查。
  2. 配置接口的IP地址、安全区域和网关地址，并在接口上应用健康检查。
  3. 制作isp1.csv和isp2.csv两个ISP地址文件，将Server 1的IP地址3.3.3.3写入isp1.csv文件中；将Server 2的IP地址9.9.9.9写入isp2.csv文件中，并上传到FW上。
  4. 配置ISP选路功能，使访问Server 1的报文从ISP1链路转发，访问Server 2的报文从ISP2链路转发。
  5. 配置基本的安全策略，允许企业内部用户访问外网资源。

本例着重介绍ISP选路相关的配置，其余配置如NAT请根据实际组网进行配置。

操作步骤

  1. 为ISP1和ISP2链路分别新建一个健康检查。选择“对象 > 健康检查”，在“健康检查列表”区域单击“新建”，为ISP1链路新建一个健康检查。单击“新建”，为ISP2链路新建一个健康检查。此处假设3.3.10.10、3.3.10.11和9.9.20.20、9.9.20.21分别为ISP1和ISP2网络中已知的设备地址。如果健康检查配置完后，状态一直为down，请检查健康检查的配置。对于V500R001C80之前的版本，需要在FW上配置对应的安全策略，允许FW向目的设备发送健康检查探测报文。对于V500R001C80及之后的版本，健康检查的探测报文不受安全策略控制，默认放行，无需配置相应安全策略。
  2. 制作isp1.csv和isp2.csv两个ISP地址文件，将Server 1的IP地址3.3.3.3写入isp1.csv文件中；将Server 2的IP地址9.9.9.9写入isp2.csv文件中，并上传到FW上。选择“网络 > 路由 > 智能选路”，在“运营商地址库”页签，单击“导入”。为ISP1和ISP2分别创建运营商名称isp1_ifgroup和isp2_ifgroup，并导入对应的ISP地址文件。
  3. 配置接口GigabitEthernet 1/0/1和GigabitEthernet 1/0/7的IP地址和网关地址，加入Untrust安全区域，选择所属运营商，启用运营商路由，并应用对应的健康检查。选择“网络 > 接口”，单击待配置的接口所在行的。
  4. 配置接口GigabitEthernet 1/0/3的IP地址，并加入Trust安全区域。选择“网络 > 接口”，单击待配置的接口所在行的。
  5. 配置Local到Untrust区域的安全策略，允许FW向目的设备发送相应的健康检查探测报文。对于V500R001C80之前的版本，需要在FW上配置对应的安全策略，允许FW向目的设备发送健康检查探测报文。对于V500R001C80及之后的版本，健康检查的探测报文不受安全策略控制，默认放行，无需配置相应安全策略。选择“策略 > 安全策略 > 安全策略”，单击“新建安全策略”。
  6. 配置Trust到Untrust区域的安全策略，允许企业内网用户访问外网资源。假设内部用户网段为10.3.0.0/24。选择“策略 > 安全策略 > 安全策略”，单击“新建安全策略”。

配置脚本

#
 isp name isp1_ifgroup set filename isp1.csv
 isp name isp2_ifgroup set filename isp2.csv
#
healthcheck enable
healthcheck name isp1_health
 destination 3.3.10.10 interface GigabitEthernet1/0/1 protocol tcp-simple destination-port 10001
 destination 3.3.10.11 interface GigabitEthernet1/0/1 protocol tcp-simple destination-port 10002
healthcheck name isp2_health
 destination 9.9.20.20 interface GigabitEthernet1/0/7 protocol tcp-simple destination-port 10003
 destination 9.9.20.21 interface GigabitEthernet1/0/7 protocol tcp-simple destination-port 10004
#
interface GigabitEthernet1/0/1
 ip address 1.1.1.1 255.255.255.0
 healthcheck isp1_health
 gateway 1.1.1.254
#
interface GigabitEthernet1/0/3
 ip address 10.3.0.1 255.255.255.0
#
interface GigabitEthernet1/0/7
 ip address 2.2.2.2 255.255.255.0
 healthcheck isp2_health
 gateway 2.2.2.254
#
firewall zone trust
  set priority 85
  add interface GigabitEthernet1/0/3
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/1
 add interface GigabitEthernet1/0/7
#
security-policy
 rule name policy_sec_local_untrust
  source-zone local
  destination-zone untrust
  destination-address 3.3.10.10 mask 255.255.255.255
  destination-address 3.3.10.11 mask 255.255.255.255
  destination-address 9.9.20.20 mask 255.255.255.255
  destination-address 9.9.20.21 mask 255.255.255.255
  service tcp
  action permit
 rule name policy_sec_trust_untrust
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action permit
#
interface-group 1 isp isp1_ifgroup
 add interface GigabitEthernet1/0/1
#
interface-group 2 isp isp2_ifgroup
 add interface GigabitEthernet1/0/7
#
return

*************************本案例配置文件***********************

[NW_L3SW]
[NW_L3SW]
[NW_L3SW]dis cu
!Software Version V200R003C00SPC300
#
sysname NW_L3SW
#
vlan batch 10 100 3999
#
diffserv domain default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %@%@5d~9:M^ipCfL\iB)EQd>3Uwe%@%@
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10
 ip address 172.16.10.1 255.255.255.0
#
interface Vlanif100
 description link-to-FW
 ip address 10.1.1.1 255.255.255.252
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 description Link-to-PC
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/4
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/5
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/6
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface GigabitEthernet0/0/25
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/26
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/27
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/28
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/29
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/30
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/31
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/32
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/33
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/34
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/35
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/36
 port link-type access
 port default vlan 3999
 stp edged-port enable
#
interface GigabitEthernet0/0/37
#
interface GigabitEthernet0/0/38
#
interface GigabitEthernet0/0/39
#
interface GigabitEthernet0/0/40
#
interface GigabitEthernet0/0/41
#
interface GigabitEthernet0/0/42
#
interface GigabitEthernet0/0/43
#
interface GigabitEthernet0/0/44
#
interface GigabitEthernet0/0/45
#
interface GigabitEthernet0/0/46
#
interface GigabitEthernet0/0/47
#
interface GigabitEthernet0/0/48
 port link-type access
 port default vlan 100
#
interface XGigabitEthernet0/0/1
#
interface XGigabitEthernet0/0/2
#
interface XGigabitEthernet0/0/3
#
interface XGigabitEthernet0/0/4
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 10.1.1.2
#
snmp-agent
snmp-agent local-engineid 800007DB03FCE33CACD040
snmp-agent community read cipher %$%$l|);R}U>F&[7Dp,]Y`F%AKZKVYWd+|&$a9xb\v#-.l8VKZNAziP0G#za|UL>J@FhID6#ZWAK%$%$
snmp-agent sys-info version v2c v3
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]
[NW_L3SW]

<HuaweiFW>
<HuaweiFW>
<HuaweiFW>dis cu
2025-09-28 12:04:14.930 +08:00
!Software Version V500R005C20SPC500
#
sysname HuaweiFW
#
 l2tp domain suffix-separator @
#
authentication-profile name portal_authen_default
#
 undo factory-configuration prohibit
#
undo telnet server enable
undo telnet ipv6 server enable
#
clock timezone Beijing add 08:00:00
#
 update schedule location-sdb weekly Sun 06:15
#
 firewall defend action discard
#
 log type traffic enable
 log type syslog enable
 log type policy enable
#
 undo dataflow enable
#
 undo sa force-detection enable
#
 isp name isp1 set filename ISP1.csv
 isp name isp2 set filename ISP2.csv
#
 banner enable
#
 slb enable
#
 user-manage web-authentication security port 8887
 undo privacy-statement english
 undo privacy-statement chinese
page-setting
 user-manage security version tlsv1.1 tlsv1.2
password-policy
 level high
#
 firewall ids authentication type aes256
#
icmp ttl-exceeded send
 icmp echo-reply fast enable
#
 web-manager security version tlsv1.1 tlsv1.2
 web-manager enable
 web-manager security enable
 undo web-manager config-guide enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
 undo ips enhanced enable
#
 feedback type threat-log enable
 feedback type pdns enable
#
 update schedule ips-sdb daily 23:21
 update schedule av-sdb daily 23:21
 update schedule sa-sdb daily 23:21
 update schedule ip-reputation daily 23:21
 update schedule cnc daily 23:21
 update schedule file-reputation daily 23:21
 update schedule ext-url-sdb daily 06:58
#
 set disk-scan parameter attach on
 set disk-scan parameter cycle 15
 set disk-scan parameter iostat 80
 set disk-scan parameter speed 10
 set disk-scan parameter switch on
 set disk-scan parameter parallel 50
 disk-usage alarm threshold 95
#
ip vpn-instance default
 ipv4-family
#
healthcheck enable
healthcheck name ISP1
 source-ip 1.32.3.1
 destination 1.32.3.10 interface GigabitEthernet1/0/1  next-hop 1.32.3.10 protocol icmp
healthcheck name ISP2
 source-ip 2.32.3.1
 destination 2.32.3.10 interface GigabitEthernet1/0/2  next-hop 2.32.3.10 protocol icmp
#
ip address-set 互联网接口IP type object
 address 0 117.32.3.1 mask 32
#
ip address-set CQ分支机构IP type object
 address 0 range 192.168.10.1 192.168.10.254
 address 1 range 172.16.100.2 172.16.100.100
#
ip address-set 总部业务IP type object
 address 0 range 172.16.10.1 172.16.10.254
#
ip address-set SSLVPN网络扩展资源客户端IP type object
 address 0 range 172.16.200.1 172.16.200.200
#
ip address-set 感兴趣流 type object
 address 0 172.16.10.0 mask 24
#
ip address-set 感兴趣流源IP_业务1 type object
 address 0 172.16.10.0 mask 24
#
ip address-set 感兴趣流目的IP_业务1 type object
 address 0 192.168.10.0 mask 24
#
ip address-set 建立VPN隧道的源地址 type object
 address 0 117.32.3.1 mask 32
#
ip address-set 建立VPN隧道的目的地址 type object
 address 0 117.32.3.10 mask 32
#
ip address-set FTP真实服务器地址 type object
 address 0 range 172.16.10.1 172.16.10.200
#
ip address-set FTP服务VIP地址 type object
 address 0 117.32.3.2 mask 32
 address 1 117.32.3.1 mask 32
#
ip address-set FTP服务器VIP type object
 address 0 117.32.3.2 mask 32
#
 time-range worktime
  period-range 08:00:00 to 18:00:00 working-day
#
acl number 3000
 rule 5 permit ip source address-set 感兴趣流源IP_业务1 destination address-set 感兴趣流目的IP_业务1
#
ipsec proposal prop21995140294
 esp authentication-algorithm sha1
 esp encryption-algorithm 3des
#
ike proposal default
 encryption-algorithm aes-256 aes-192 aes-128
 dh group14
 authentication-algorithm sha2-512 sha2-384 sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
ike proposal 1
 encryption-algorithm 3des
 dh group2
 authentication-algorithm sha1
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer ike21995140294
 undo version 2
 exchange-mode auto
 pre-shared-key %^%#`n};A)f~p;!$wi!q5iEIy8;fPj-dq.>eA0$_lvrI%^%#
 ike-proposal 1
 remote-id-type none
 local-id 117.32.3.1
 dpd type periodic
 remote-address 117.32.3.10
 rsa encryption-padding oaep
 rsa signature-padding pss
 local-id-preference certificate enable
 ikev2 authentication sign-hash sha2-256
#
ipsec policy ipsec2199514012 1 isakmp
 security acl 3000
 ike-peer ike21995140294
 proposal prop21995140294
 tunnel local applied-interface
 undo policy enable
 alias IPSEC_to_H3CRouter
 sa trigger-mode auto
 sa duration traffic-based 5242880
 sa duration time-based 3600
#
web-auth-server default
 port 50100
#
portal-access-profile name default
#
ip pool pool
 section 0 172.16.100.2 172.16.100.100
#
aaa
 authentication-scheme admin_ad
 authentication-scheme admin_ad_local
 authentication-scheme admin_hwtacacs
 authentication-scheme admin_hwtacacs_local
 authentication-scheme admin_ldap
 authentication-scheme admin_ldap_local
 authentication-scheme admin_local
 authentication-scheme admin_radius
 authentication-scheme admin_radius_local
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
  service-type internetaccess ssl-vpn l2tp ike
  internet-access mode password
  reference user current-domain
 manager-user audit-admin
  password cipher $1a$Vg0H:|1TH)$c/eA0.a335K6l1+u)c7*L+`m%}a\~.\Ep)Tt2q0($
  service-type web terminal
  level 15

<ISP1>
<ISP1>
<ISP1>dis cu
#
 version 7.1.064, Release 0707P16
#
 sysname ISP1
#
ospf 1 router-id 1.1.1.5
 import-route direct
 area 0.0.0.0
  network 1.1.1.2 0.0.0.0
  network 1.1.1.5 0.0.0.0
#
 ip unreachables enable
 ip ttl-expires enable
#
 password-recovery enable
#
vlan 1
#
controller Cellular0/0
#
interface Virtual-PPP1
 ppp chap password cipher $c$3$7+JsxvAZR/bo5k3VQVojUdH041O4G8TW+rtP2gCv
 ppp chap user user0002
 ppp pap local-user user0001 password cipher $c$3$qmbMgjjDA/VzdLSGyc6l+WmjS8aFg+e97Nihjxhf
 ip address ppp-negotiate
 l2tp-auto-client l2tp-group 1
 nat outbound
#
interface NULL0
#
interface Ethernet0/3
 port link-mode bridge
#
interface Ethernet0/4
 port link-mode bridge
#
interface Ethernet0/5
 port link-mode bridge
#
interface Ethernet0/6
 port link-mode bridge
#
interface Ethernet0/7
 port link-mode bridge
#
interface Ethernet0/8
 port link-mode bridge
#
interface Ethernet0/9
 port link-mode bridge
#
interface Ethernet0/10
 port link-mode bridge
#
interface Ethernet0/11
 port link-mode bridge
#
interface Ethernet0/12
 port link-mode bridge
#
interface Ethernet0/13
 port link-mode bridge
#
interface Ethernet0/14
 port link-mode bridge
#
interface Ethernet0/15
 port link-mode bridge
#
interface Ethernet0/16
 port link-mode bridge
#
interface Ethernet0/17
 port link-mode bridge
#
interface Ethernet0/18
 port link-mode bridge
#
interface Ethernet0/19
 port link-mode bridge
#
interface Ethernet0/20
 port link-mode bridge
#
interface Ethernet0/21
 port link-mode bridge
#
interface Ethernet0/22
 port link-mode bridge
#
interface Ethernet0/23
 port link-mode bridge
#
interface Ethernet0/24
 port link-mode bridge
#
interface Ethernet0/25
 port link-mode bridge
#
interface Ethernet0/26
 port link-mode bridge
#
interface GigabitEthernet0/0
 port link-mode route
 ip address 1.1.1.5 255.255.255.252
#
interface GigabitEthernet0/1
 port link-mode route
 description LinktoFW
 ip address 1.32.3.10 255.255.255.0
#
interface GigabitEthernet0/2
 port link-mode route
 description Link-to-ISP2
 ip address 1.1.1.2 255.255.255.252
#
interface GigabitEthernet0/27
 port link-mode route
#
 scheduler logfile size 16
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 1.32.3.1
 ip route-static 22.22.22.22 32 1.1.1.6
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
l2tp-group 1 mode lac
 lns-ip 117.32.3.1
 tunnel name cqfenzhi
 tunnel password cipher $c$3$lxEdd6VH206m6NI2dYg+iDARzTWY7IgU/xCC
#
return
<ISP1>
<ISP1>
<ISP1>
<ISP1>
<ISP1>
<ISP1>
<ISP1>
<ISP2>
#Apr 26 16:15:35:465 2000 ISP2 SHELL/4/LOGIN:
 Trap 1.3.6.1.4.1.25506.2.2.1.1.3.0.1<hh3cLogIn>: login from Console
%Apr 26 16:15:35:606 2000 ISP2 SHELL/5/SHELL_LOGIN: Console logged in from aux0.
<ISP2>
<ISP2>
<ISP2>
<ISP2>dis cu
#
 version 5.20, Release 1206
#
 sysname ISP2
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
#
 domain default enable system
#
 telnet server enable
#
 ip ttl-expires enable
 ip unreachables enable
#
vlan 1
#
radius scheme system
 server-type extended
 primary authentication 127.0.0.1 1645
 primary accounting 127.0.0.1 1646
 user-name-format without-domain
#
domain system
 access-limit disable
 state active
 idle-cut disable
 self-service-url disable
#
user-group system
#
interface NULL0
#
interface GigabitEthernet1/0/1
 port link-mode route
 ip address 2.32.3.10 255.255.255.0
#
interface GigabitEthernet1/0/10
 port link-mode route
 ip address 1.1.1.6 255.255.255.252
#
interface GigabitEthernet1/0/48
 port link-mode route
 ip address 2.2.2.2 255.255.255.252
#
interface GigabitEthernet1/0/2
 port link-mode bridge
#
interface GigabitEthernet1/0/3
 port link-mode bridge
#
interface GigabitEthernet1/0/4
 port link-mode bridge
#
interface GigabitEthernet1/0/5
 port link-mode bridge
#
interface GigabitEthernet1/0/6
 port link-mode bridge
#
interface GigabitEthernet1/0/7
 port link-mode bridge
#
interface GigabitEthernet1/0/8
 port link-mode bridge
#
interface GigabitEthernet1/0/9
 port link-mode bridge
#
interface GigabitEthernet1/0/11
 port link-mode bridge
#
interface GigabitEthernet1/0/12
 port link-mode bridge
#
interface GigabitEthernet1/0/13
 port link-mode bridge
#
interface GigabitEthernet1/0/14
 port link-mode bridge
#
interface GigabitEthernet1/0/15
 port link-mode bridge
#
interface GigabitEthernet1/0/16
 port link-mode bridge
#
interface GigabitEthernet1/0/17
 port link-mode bridge
#
interface GigabitEthernet1/0/18
 port link-mode bridge
#
interface GigabitEthernet1/0/19
 port link-mode bridge
#
interface GigabitEthernet1/0/20
 port link-mode bridge
#
interface GigabitEthernet1/0/21
 port link-mode bridge
#
interface GigabitEthernet1/0/22
 port link-mode bridge
#
interface GigabitEthernet1/0/23
 port link-mode bridge
#
interface GigabitEthernet1/0/24
 port link-mode bridge
#
interface GigabitEthernet1/0/25
 port link-mode bridge
#
interface GigabitEthernet1/0/26
 port link-mode bridge
#
interface GigabitEthernet1/0/27
 port link-mode bridge
#
interface GigabitEthernet1/0/28
 port link-mode bridge
#
interface GigabitEthernet1/0/29
 port link-mode bridge
#
interface GigabitEthernet1/0/30
 port link-mode bridge
#
interface GigabitEthernet1/0/31
 port link-mode bridge
#
interface GigabitEthernet1/0/32
 port link-mode bridge
#
interface GigabitEthernet1/0/33
 port link-mode bridge
#
interface GigabitEthernet1/0/34
 port link-mode bridge
#
interface GigabitEthernet1/0/35
 port link-mode bridge
#
interface GigabitEthernet1/0/36
 port link-mode bridge
#
interface GigabitEthernet1/0/37
 port link-mode bridge
#
interface GigabitEthernet1/0/38
 port link-mode bridge
#
interface GigabitEthernet1/0/39
 port link-mode bridge
#
interface GigabitEthernet1/0/40
 port link-mode bridge
#
interface GigabitEthernet1/0/41
 port link-mode bridge
#
interface GigabitEthernet1/0/42
 port link-mode bridge
#
interface GigabitEthernet1/0/43
 port link-mode bridge
#
interface GigabitEthernet1/0/44
 port link-mode bridge
#
interface GigabitEthernet1/0/45
 port link-mode bridge
#
interface GigabitEthernet1/0/46
 port link-mode bridge
#
interface GigabitEthernet1/0/47
 port link-mode bridge
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
#
ospf 1 router-id 1.1.1.6
 import-route direct
 area 0.0.0.0
  network 1.1.1.6 0.0.0.0
  network 2.2.2.2 0.0.0.0
#
 ip route-static 0.0.0.0 0.0.0.0 2.32.3.1
 ip route-static 11.11.11.11 255.255.255.255 1.1.1.5
#
 load xml-configuration
#
user-interface aux 0
user-interface vty 0 15
 user privilege level 3
 set authentication password simple 123456
 idle-timeout 0 0
#
return
<ISP2>
<ISP2>
<ISP2>
<ISP2>
<ISP2>
<ISP2>
<ISP2>
<ISP2>

<TargetServer>dis cu
!Software Version V200R003C00SPC300
#
sysname TargetServer
#
vlan batch 10 20 111
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %@%@5d~9:M^ipCfL\iB)EQd>3Uwe%@%@
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10
 ip address 1.1.1.1 255.255.255.252
#
interface Vlanif20
 ip address 2.2.2.1 255.255.255.252
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface GigabitEthernet0/0/25
#
interface GigabitEthernet0/0/26
#
interface GigabitEthernet0/0/27
#
interface GigabitEthernet0/0/28
#
interface GigabitEthernet0/0/29
#
interface GigabitEthernet0/0/30
#
interface GigabitEthernet0/0/31
#
interface GigabitEthernet0/0/32
#
interface GigabitEthernet0/0/33
#
interface GigabitEthernet0/0/34
#
interface GigabitEthernet0/0/35
#
interface GigabitEthernet0/0/36
#
interface GigabitEthernet0/0/37
#
interface GigabitEthernet0/0/38
#
interface GigabitEthernet0/0/39
#
interface GigabitEthernet0/0/40
#
interface GigabitEthernet0/0/41
#
interface GigabitEthernet0/0/42
#
interface GigabitEthernet0/0/43
#
interface GigabitEthernet0/0/44
#
interface GigabitEthernet0/0/45
#
interface GigabitEthernet0/0/46
#
interface GigabitEthernet0/0/47
#
interface GigabitEthernet0/0/48
 port link-type access
 port default vlan 20
#
interface XGigabitEthernet0/1/1
#
interface XGigabitEthernet0/1/2
#
interface NULL0
#
interface LoopBack0
 ip address 11.11.11.11 255.255.255.255
#
interface LoopBack1
 ip address 22.22.22.22 255.255.255.255
#
ospf 1 router-id 11.11.11.11
 import-route direct
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 2.2.2.1 0.0.0.0
#
ip route-static 1.32.3.0 255.255.255.0 1.1.1.2
ip route-static 2.32.3.0 255.255.255.0 2.2.2.2
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return
<TargetServer>
<TargetServer>
<TargetServer>
<TargetServer>
<TargetServer>

类似文章
